Fractal Design | NODE 804 | Side window | 2 – USB 3.0Audio in/outPower button with LED (white)HDD activity LED (white) | Black | Micro ATX | Power supply included No

Pakendi omadused

• Packing quantity: 1.00 pc(s)
• Volume (m3): 0.07134192 m³
• Tare weight (kg): 1.414 kg
• Gross depth (mm): 468 mm
• Gross width (mm): 370 mm
• Gross height (mm): 412 mm
• Plastic (No PET): 27.00 g
• Paper/Pasteboard: 1387.00 g
• Embeeded battery: No
• WEEE tax: No
• Palette Qty: 12 pc(s)

Täiendav info

• Producer product name: NODE 804
• Gross weight: 7.2 kg

Tehnilised detailid

• Warranty: 24 month(s)
• Net weight: 5.786 kg
• Producer: Fractal Design

Ekraan

• Paneeli tüüp: 2 – USB 3.0Audio in/outPower button with LED (white)HDD activity LED (white)

Muud funktsioonid

• Laienduspesad: 5 expansion slots
• Mõõdud (l x s x k): 344 x 307 x 389 mm mm
• Draivilahtrid: 8 – 3.5″ HDD positions2 – 2.5″ dedicated SSD unit positions2 – Extra positions for either 3,5″ or 2,5″ drives "

Mälu

• Toetatud kõvakettasuurused: 2.5,3.5 mm

Toide

• Kaasas toiteplokk: No

Disain

• Toote värv: Black
• Tüüp: PC
• Aknaga: Yes
• 2,5" salvede arv: 2
• 3,5" lahtrite arv: 8
• Emaplaadi toetatud kujutegurid: Micro-ATX, Mini-ATX
• Laienduspesade arv: 5 expansion slots

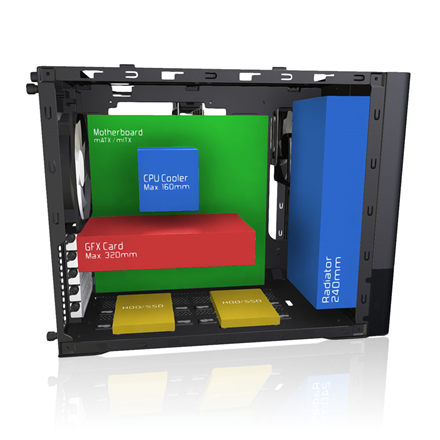

• Jahutuse tüüp: Front: 4 – 120mm fans (included is one hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)Rear: 1 – 120/140mm fan (included is a hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)Rear: 1 – 120mm fan slots (included is 1 hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)Top: 4 – 120x140mm fans (not included)Fan controller: 1 – Integrated fan controller for up to 3 fans (included)WATER COOLING COMPATIBILITY:Front (right chamber) – 240 mm radiator configurations up to 60 mm thick (with fans) and 278 mm tall are allowed.Front (left chamber) – 240 mm radiator configurations up to 60 mm thick (with fans) and 278 mm tall are allowed. Using a radiator in this position prevents the use of a fan in the top position just next to it.Top (right chamber) – 240/280 mm radiators up to 130mm thick (with fans) may be fitted if the HDD drive bays are taken out or placed elsewhere. No limitation to thickness.Top (left chamber) – 240 mm radiator configurations up to 130 mm thick (with fans) will fit. Radiators in this position limits the height of memory modules to 48 mm tall.
• Kujutegur: Micro ATX

Kaal ja mõõtmed

• Kaal: 6 oz
• Laius: 34.4 cm
• Kõrgus: 30.7 cm
• Sügavus: 38.9 cm

Jahutus

• Maksimaalne esiventilaatorite arv: 4
• Toetatud esiventilaatorite läbimõõt: 120 mm
• Toetatud tagaventilaatorite läbimõõt: 120,140 mm
• Installitud tagaventilaatorid: 2x 120 mm
• Maksimaalne tagaventilaatorite arv: 2
• Vedelikjahutus: Yes
• Toetatud ülemiste ventilaatorite läbimõõt: 120,140 mm
• Installitud esiventilaatorid: 1x 120 mm
• Maksimaalne ülemiste ventilaatorite arv: 4

Pakendi andmed

• Pakendi sügavus: 41.2 cm
• Pakendi kõrgus: 46.8 cm
• Pakendi laius: 37 cm
• Pakendi kaal: 7.7 oz

Ergonoomika

• LED-indikaatorid: HDD, Power

Pesad & liidesed

• Audiosisend: Yes
• Audioväljund: Yes
• USB 3.0 (3.1 Gen 1) Tüüp-A liideste arv: 2
